CONICAL FILTERS

Conical Filters » Twin Air

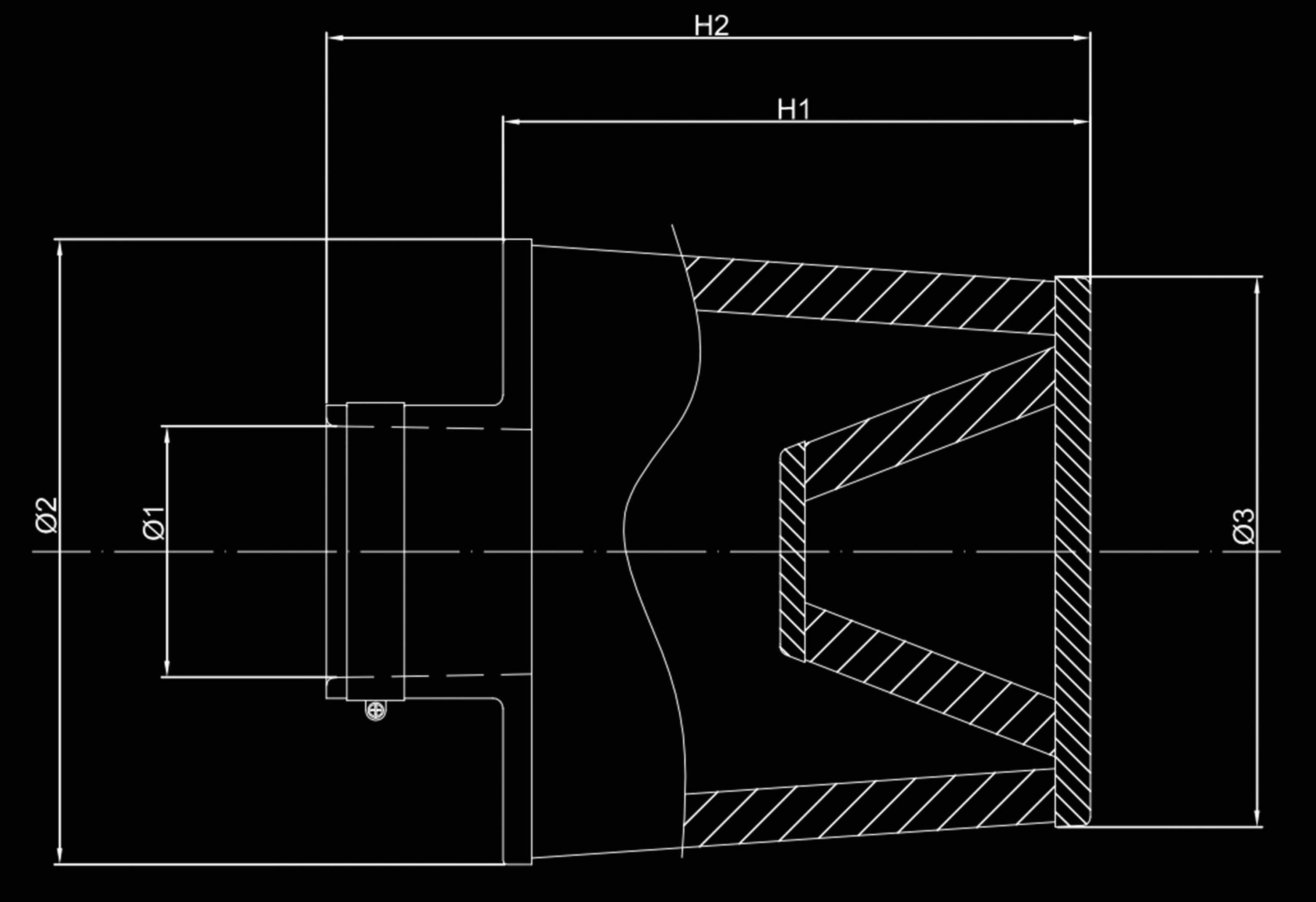

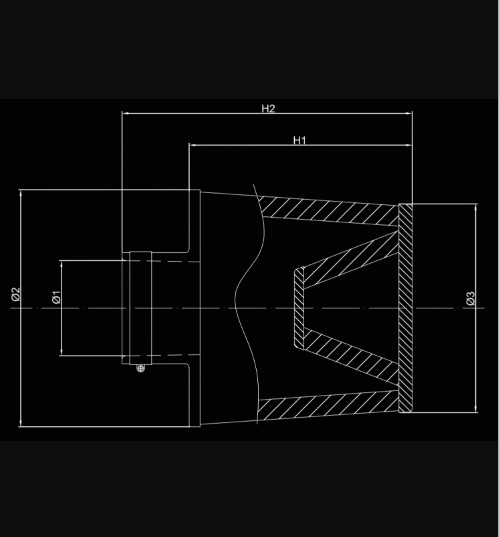

BMC Code Top material Flange Inside Diameter Ø1 Base Outside Diameter Ø2 Top Outside Diameter Ø3 Height - H1 Height - H2 Flange Length
FBTS50-150 Plastic 50 mm 108 mm 85 mm 156 mm 174 mm 18 mm Diagram Filter
FBTS50-150P Plastic 50 mm 108 mm 85 mm 156 mm 174 mm 18 mm Diagram Filter
FBTS60-150 Plastic 60 mm 108 mm 84 mm 154 mm 179 mm 25 mm Diagram Filter
FBTS60-150P Plastic 60 mm 108 mm 84 mm 154 mm 179 mm 25 mm Diagram Filter
FBTS70-150P Plastic 70 mm 108 mm 84 mm 154 mm 179 mm 25 mm Diagram Filter
FBTW00002 Metal 114 mm 149 mm 119 mm 114 mm 130 mm 16 mm Diagram Filter
FBTW00003 Plastic 76 mm 113 mm 85 mm 133 mm 151 mm 18 mm Diagram Filter
FBTW100-140 Metal 100 mm 152 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW100-140C Carbon 100 mm 152 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW100-140P Plastic 100 mm 152 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW100-200 Metal 100 mm 150 mm 134 mm 200 mm 243 mm 43 mm Diagram Filter
FBTW100-200C Carbon 100 mm 150 mm 134 mm 200 mm 243 mm 43 mm Diagram Filter
FBTW100-200P Plastic 100 mm 150 mm 134 mm 200 mm 243 mm 43 mm Diagram Filter
FBTW110-140 Metal 110 mm 152 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW110-140C Carbon 110 mm 152 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW110-140P Plastic 110 mm 152 mm 134 mm 143 mm 186 mm 33 mm Diagram Filter
FBTW110-200P Plastic 110 mm 172 mm 134 mm 202 mm 235 mm 33 mm Diagram Filter
FBTW130-140 Metal 130 mm 140 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW130-140C Carbon 130 mm 140 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW130-140P Plastic 130 mm 140 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW130-200P Plastic 130 mm 192 mm 134 mm 202 mm 235 mm 33 mm Diagram Filter
FBTW130-206P Plastic 130 mm 180 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW141-206 Metal 141 mm 191 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW141-206P Plastic 141 mm 191 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW141-230 Metal 141 mm 191 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW141-230C Carbon 141 mm 191 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW141-230P Plastic 141 mm 191 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW150-140 Metal 150 mm 160 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW150-140C Carbon 150 mm 160 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW150-140P Plastic 150 mm 160 mm 134 mm 143 mm 161 mm 18 mm Diagram Filter
FBTW150-160 Metal 150 mm 160 mm 134 mm 163 mm 181 mm 18 mm Diagram Filter
FBTW150-160C Carbon 150 mm 160 mm 134 mm 163 mm 181 mm 18 mm Diagram Filter
FBTW150-160P Plastic 150 mm 160 mm 134 mm 163 mm 181 mm 18 mm Diagram Filter
FBTW150-206 Metal 150 mm 200 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW150-206C Carbon 150 mm 200 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW150-206P Plastic 150 mm 200 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW150-230 Metal 150 mm 200 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW150-230C Carbon 150 mm 200 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW150-230P Plastic 150 mm 200 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW178-206P Plastic 178 mm 228 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW203-206P Plastic 203 mm 253 mm 134 mm 206 mm 230 mm 24 mm Diagram Filter
FBTW203-230P Plastic 203 mm 253 mm 134 mm 230 mm 254 mm 24 mm Diagram Filter
FBTW60-140 Metal 60 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBTW60-140C Carbon 60 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBTW60-140P Plastic 60 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBTW60-150 Metal 60 mm 106 mm 84 mm 152 mm 179 mm 27 mm Diagram Filter
FBTW60-150P Plastic 60 mm 106 mm 84 mm 152 mm 179 mm 27 mm Diagram Filter
FBTW63-140P Plastic 63 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBTW65-150 Metal 152 mm 107 mm 84 mm 152 mm 197 mm 45 mm Diagram Filter
FBTW65-150P Plastic 152 mm 107 mm 84 mm 152 mm 197 mm 45 mm Diagram Filter
FBTW70-140 Metal 70 mm 152 mm 84 mm 143 mm 185 mm 42 mm Diagram Filter
FBTW70-140C Carbon 70 mm 152 mm 84 mm 143 mm 185 mm 42 mm Diagram Filter
FBTW70-140P Plastic 70 mm 152 mm 84 mm 143 mm 185 mm 42 mm Diagram Filter
FBTW70-150 Metal 70 mm 106 mm 84 mm 152 mm 197 mm 45 mm Diagram Filter
FBTW70-150P Plastic 70 mm 106 mm 84 mm 152 mm 197 mm 45 mm Diagram Filter
FBTW76-140 Metal 76 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW76-140C Carbon 76 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW76-140P Plastic 76 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW76-200 Metal 76 mm 151 mm 134 mm 203 mm 246 mm 43 mm Diagram Filter
FBTW76-200P Plastic 76 mm 151 mm 134 mm 203 mm 246 mm 43 mm Diagram Filter
FBTW80-140 Plastic 80 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW80-140C Carbon 80 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW80-140P Plastic 80 mm 151 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW80-151C Carbon 80 mm 127 mm 86 mm 151 mm 170 mm 19 mm Diagram Filter
FBTW80-151P Plastic 80 mm 127 mm 86 mm 151 mm 170 mm 19 mm Diagram Filter
FBTW80-80 Metal 80 mm 130 mm 119 mm 80 mm 100 mm 20 mm Diagram Filter
FBTW85-140 Metal 85 mm 152 mm 134 mm 143 mm 185 mm 42 mm Diagram Filter
FBTW85-140C Carbon 85 mm 152 mm 134 mm 143 mm 185 mm 42 mm Diagram Filter
FBTW85-140P Plastic 85 mm 152 mm 134 mm 143 mm 185 mm 42 mm Diagram Filter

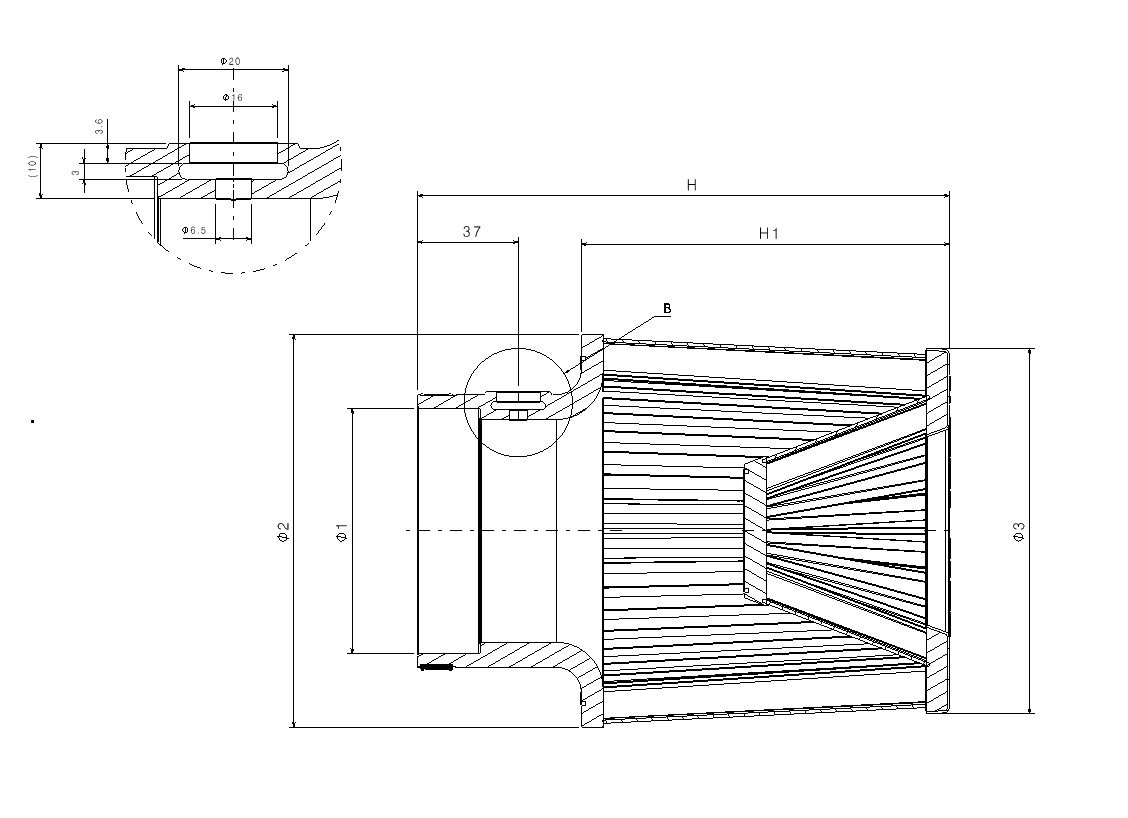

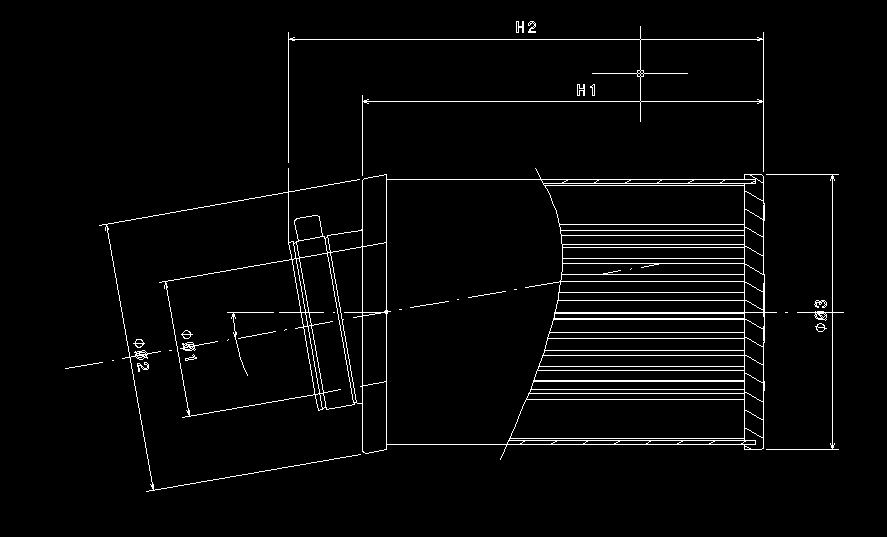

FBTW90-130CWH Carbon 90 mm 144 mm 134 mm 135 mm 195 mm 60 mm Diagram Filter
FBTW90-130PWH Plastic 90 mm 144 mm 134 mm 135 mm 195 mm 60 mm Diagram Filter
FBTW90-130WH Metal 90 mm 144 mm 134 mm 135 mm 195 mm 60 mm Diagram Filter
FBTW90-140 Metal 90 mm 150 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW90-140C Carbon 90 mm 150 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW90-140P Plastic 90 mm 150 mm 134 mm 143 mm 186 mm 43 mm Diagram Filter
FBTW90-200 Metal 90 mm 151 mm 134 mm 203 mm 246 mm 43 mm Diagram Filter
FBTW90-200P Plastic 90 mm 151 mm 134 mm 203 mm 246 mm 43 mm Diagram Filter
FBTW90-300P Plastic 90 mm 153 mm 134 mm 302 mm 342 mm 40 mm Diagram Filter

Conical Filters

BMC conical filters let you remove the original air box and provide long life, better performance and easinessto replace.

These filters are available in the following versions:



Moreover, you can also find the following categories:

  • Carburettor filters: available both in single and twin version, these plug-and-play filters, directly installed on the carburettor, allow a greater and cleaner air flow.
  • Engine breather filters: useful in the oil vapors recovery process.
  • Specific kits: realized with conical filters and ready-to-install, these kits fit only particular models.
Advanced Technology and Material Quality

The red rubber used to produce the intake is especially heat-and-shock resistant.
It can't be distorted by temperature. The special mesh used for the filtering element enables us to produce air filters for applications up to 700 Hp (NOS or Turbo) without having deforming problems in the filter.

Applications

BMC direct induction filters can be fitted on every kind of car. If necessary, BMC is able to supply tubes and rubber connectors to make up a complete kit. For some particular applications, an alloy flexible tube is available to duct cold air to the conical filter. In fact, colder aspirated air means you have a bigger volumetric mass. A greater mass of air gives better combustion and finally, increased performance.
