CONICAL FILTERS

Single Air

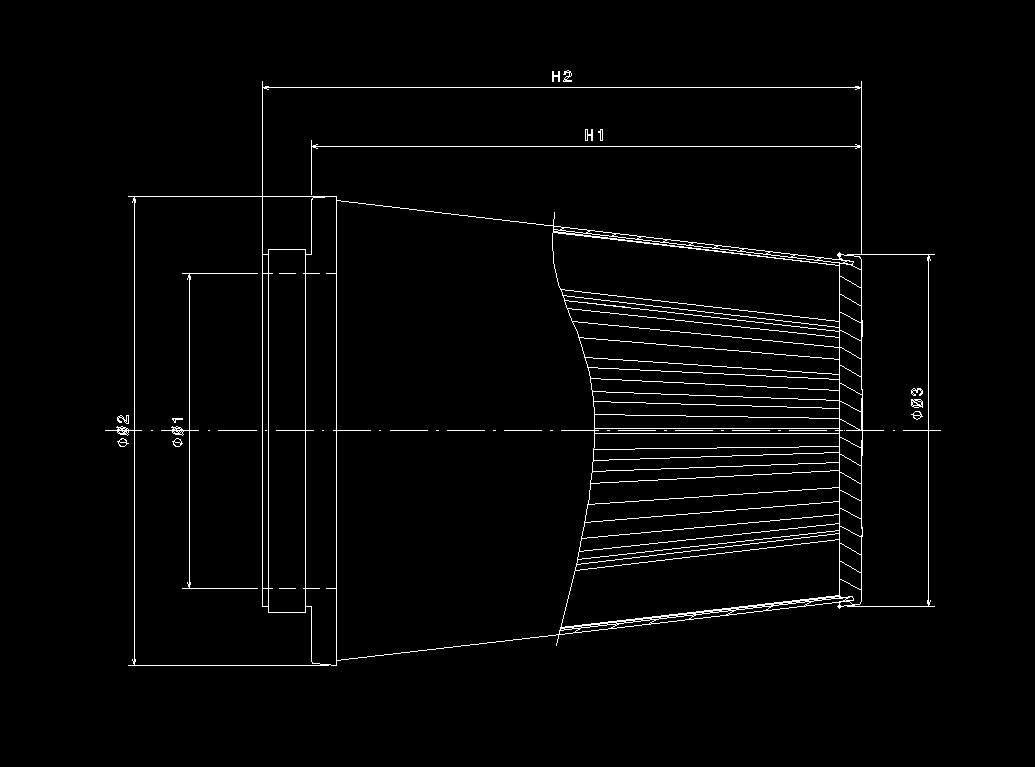

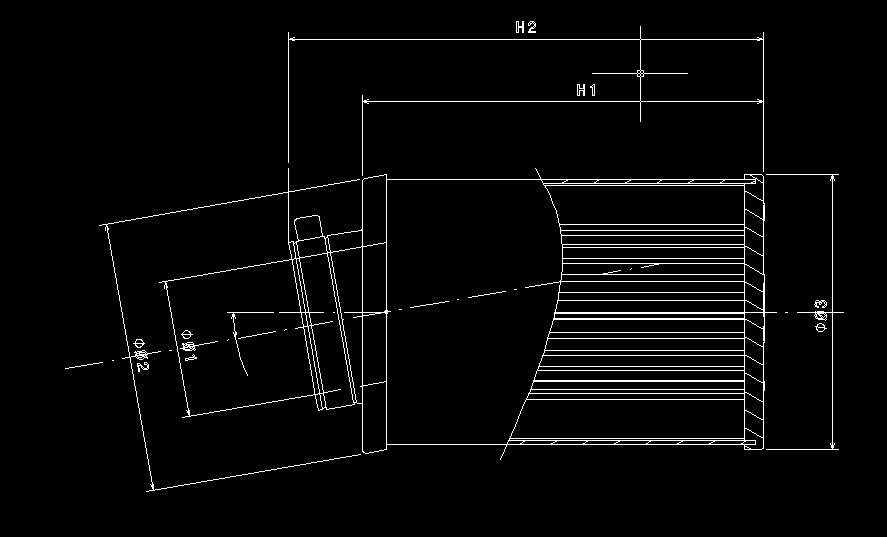

BMC Code Top material Flange Inside Diameter Ø1 Base Outside Diameter Ø2 Top Outside Diameter Ø3 Height - H1 Height - H2 Flange Length
FBSA00001 Polyurethane 114 mm 149 mm 114 mm 114 mm 130 mm 16 mm Diagram Filter
FBSA00002 Polyurethane 43 mm 86 mm 87 mm 127 mm 150 mm 23 mm Diagram Filter
FBSA00004 Polyurethane 101 mm 152 mm 114 mm 178 mm 194 mm 16 mm Diagram Filter
FBSA00007 Polyurethane 101 mm 140 mm 89 mm 105 mm 16 mm Diagram Filter
FBSA00008 Polyurethane 113 mm 152 mm 114 mm 136 mm 152 mm 16 mm Diagram Filter
FBSA100-110 Polyurethane 100 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA100-110C Carbon 100 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA100-140 Polyurethane 100 mm 152 mm 138 mm 143 mm 185 mm 42 mm Diagram Filter
FBSA100-140C Carbon 100 mm 152 mm 138 mm 143 mm 185 mm 42 mm Diagram Filter
FBSA110-110 Polyurethane 110 mm 150 mm 138 mm 110 mm 153 mm 43 mm Diagram Filter
FBSA110-110C Carbon 110 mm 150 mm 138 mm 110 mm 153 mm 43 mm Diagram Filter
FBSA110-140 Polyurethane 110 mm 150 mm 138 mm 140 mm 183 mm 43 mm Diagram Filter
FBSA110-140C Carbon 110 mm 150 mm 138 mm 140 mm 183 mm 43 mm Diagram Filter
FBSA110-200 Polyurethane 110 mm 150 mm 138 mm 200 mm 243 mm 43 mm Diagram Filter
FBSA110-200C Carbon 110 mm 150 mm 138 mm 200 mm 243 mm 43 mm Diagram Filter
FBSA110-300 Polyurethane 110 mm 150 mm 138 mm 303 mm 345 mm 42 mm Diagram Filter
FBSA110-300C Carbon 110 mm 150 mm 138 mm 303 mm 345 mm 42 mm Diagram Filter
FBSA54-150 Polyurethane 54 mm 86 mm 65 mm 150 mm 170 mm 20 mm Diagram Filter
FBSA60-110 Polyurethane 60 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA60-110C Carbon 60 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA60-128 Polyurethane 60 mm 107 mm 87 mm 130 mm 173 mm 43 mm Diagram Filter
FBSA60-140 Polyurethane 60 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA60-140C Carbon 60 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA60-150 Polyurethane 60 mm 106 mm 87 mm 152 mm 196 mm 44 mm Diagram Filter
FBSA65-128 Polyurethane 65 mm 100 mm 77 mm 128 mm 143 mm 15 mm Diagram Filter
FBSA65-130 Polyurethane 65 mm 100 mm 77 mm 130 mm 145 mm 15 mm Diagram Filter
FBSA65-150 Polyurethane 65 mm 106 mm 87 mm 152 mm 198 mm 46 mm Diagram Filter
FBSA70-110 Polyurethane 70 mm 152 mm 138 mm 112 mm 155 mm 43 mm Diagram Filter
FBSA70-110C Carbon 70 mm 152 mm 138 mm 112 mm 155 mm 43 mm Diagram Filter
FBSA70-128 Polyurethane 70 mm 115 mm 87 mm 128 mm 165 mm 37 mm Diagram Filter
FBSA70-140 Polyurethane 70 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA70-140C Carbon 70 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA70-150 Polyurethane 70 mm 106 mm 87 mm 152 mm 198 mm 46 mm Diagram Filter
FBSA76-110 Polyurethane 76 mm 152 mm 138 mm 113 mm 153 mm 40 mm Diagram Filter
FBSA76-110C Carbon 76 mm 152 mm 138 mm 113 mm 153 mm 40 mm Diagram Filter
FBSA76-140 Polyurethane 76 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBSA76-140C Carbon 76 mm 150 mm 134 mm 140 mm 183 mm 43 mm Diagram Filter
FBSA80-110 Polyurethane 80 mm 151 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA80-110C Carbon 80 mm 151 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA80-124P Polyurethane 80 mm 115 mm 77 mm 124 mm 142 mm 18 mm Diagram Filter
FBSA80-140 Polyurethane 80 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA80-140C Carbon 80 mm 152 mm 138 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA85-110 Polyurethane 85 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA85-110C Carbon 85 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA85-140 Polyurethane 85 mm 152 mm 137 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA85-140C Carbon 85 mm 152 mm 137 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA90-110 Polyurethane 90 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA90-110C Carbon 90 mm 152 mm 138 mm 113 mm 156 mm 43 mm Diagram Filter
FBSA90-140 Polyurethane 90 mm 152 mm 137 mm 143 mm 186 mm 43 mm Diagram Filter
FBSA90-140C Carbon 90 mm 152 mm 137 mm 143 mm 186 mm 43 mm Diagram Filter
FBSS50-100 Polyurethane 50 mm 105 mm 87 mm 81 mm 100 mm 19 mm Diagram Filter
FBSS50-128 Polyurethane 50 mm 107 mm 87 mm 130 mm 149 mm 19 mm Diagram Filter
FBSS50-150 Polyurethane 50 mm 107 mm 84 mm 153 mm 171 mm 18 mm Diagram Filter
FBSS60-128 Polyurethane 60 mm 107 mm 87 mm 130 mm 149 mm 19 mm Diagram Filter
FBSS60-150 Polyurethane 60 mm 108 mm 87 mm 153 mm 174 mm 21 mm Diagram Filter
FBSS60-85 Polyurethane 60 mm 85 mm 62 mm 84 mm 104 mm 20 mm Diagram Filter
FBSS70-128 Polyurethane 70 mm 107 mm 87 mm 131 mm 151 mm 20 mm Diagram Filter
FBSS70-150 Polyurethane 70 mm 115 mm 87 mm 154 mm 175 mm 21 mm Diagram Filter
FBSS70-70 Polyurethane 70 mm 106 mm 86 mm 77 mm 100 mm 23 mm Diagram Filter
FMSA28-60 Plastic 28 mm 58 mm 53 mm 62 mm 78 mm 16 mm Diagram Filter
FMSA32-63 Plastic 32 mm 75 mm 77 mm 63 mm 85 mm 22 mm Diagram Filter
FMSA41-60 Plastic 41 mm 75 mm 52 mm 60 mm 76 mm 16 mm Diagram Filter
FMSA42-127 Polyurethane 42 mm 76 mm 76 mm 124 mm 140 mm 16 mm Diagram Filter
FMSA49-75 Plastic 49 mm 76 mm 53 mm 75 mm 92 mm 17 mm Diagram Filter
FMSA50-85 Plastic 50 mm 72 mm 72 mm 86 mm 96 mm 10 mm Diagram Filter
FMSA53-102 Polyurethane 53 mm 90 mm 53 mm 101 mm 121 mm 20 mm Diagram Filter
FMSA53-48 Polyurethane 53 mm 72 mm 41 mm 48 mm 60 mm 12 mm Diagram Filter
FMSA53-85 Polyurethane 53 mm 90 mm 77 mm 84 mm 104 mm 20 mm Diagram Filter
FMSA60-100 Polyurethane 60 mm 85 mm 63 mm 95 mm 110 mm 15 mm Diagram Filter
FMSA66-110 Polyurethane 66 mm 100 mm 62 mm 101 mm 121 mm 20 mm Diagram Filter
FMSS52-102 Polyurethane 52 mm 89 mm 89 mm 102 mm 118 mm 16 mm Diagram Filter
FMSS52-127 Polyurethane 52 mm 89 mm 89 mm 127 mm 146 mm 19 mm Diagram Filter
FMSS52-152 Polyurethane 52 mm 89 mm 89 mm 152 mm 171 mm 19 mm Diagram Filter
