CONICAL FILTERS

Conical Filters » Engine Breather

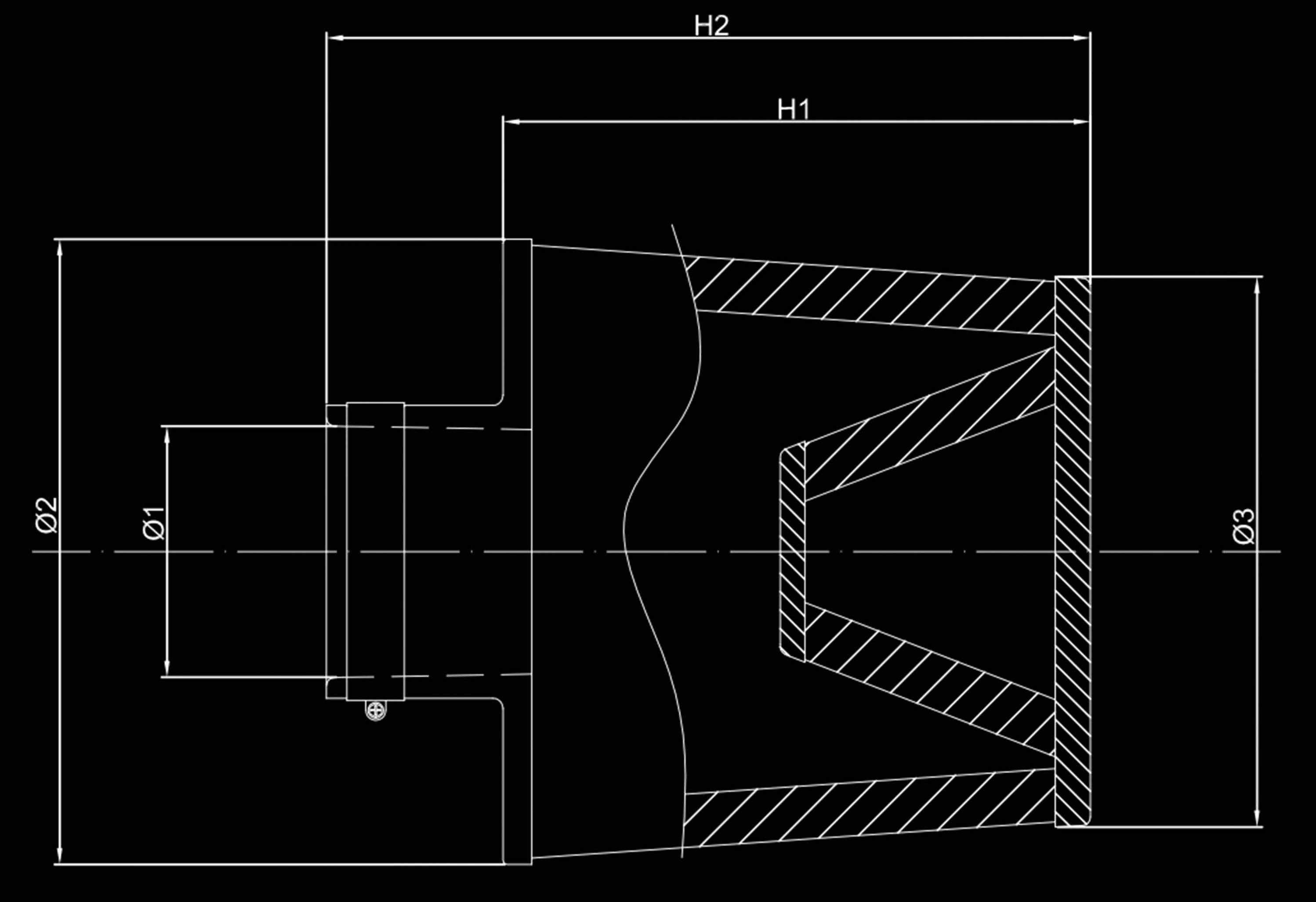

BMC Code Top material Flange Inside Diameter Ø1 Base Outside Diameter Ø2 Top Outside Diameter Ø3 Height - H1 Height - H2 Flange Length
FBSA12-40 Plastic 12 mm 51 mm 41 mm 48 mm 61 mm 13 mm Diagram Filter
FBSA16-40 Plastic 16 mm 51 mm 41 mm 48 mm 61 mm 13 mm Diagram Filter
FBSA20-40 Plastic 20 mm 51 mm 41 mm 48 mm 61 mm 13 mm Diagram Filter
FBSA25-40 Plastic 25 mm 51 mm 41 mm 48 mm 61 mm 13 mm Diagram Filter
FBSA30-40 Plastic 30 mm 51 mm 41 mm 48 mm 61 mm 13 mm Diagram Filter

Conical Filters

BMC conical filters let you remove the original air box and provide long life, better performance and easinessto replace.

These filters are available in the following versions:



Moreover, you can also find the following categories:

  • Carburettor filters: available both in single and twin version, these plug-and-play filters, directly installed on the carburettor, allow a greater and cleaner air flow.
  • Engine breather filters: useful in the oil vapors recovery process.
  • Specific kits: realized with conical filters and ready-to-install, these kits fit only particular models.
Advanced Technology and Material Quality

The red rubber used to produce the intake is especially heat-and-shock resistant.
It can't be distorted by temperature. The special mesh used for the filtering element enables us to produce air filters for applications up to 700 Hp (NOS or Turbo) without having deforming problems in the filter.

Applications

BMC direct induction filters can be fitted on every kind of car. If necessary, BMC is able to supply tubes and rubber connectors to make up a complete kit. For some particular applications, an alloy flexible tube is available to duct cold air to the conical filter. In fact, colder aspirated air means you have a bigger volumetric mass. A greater mass of air gives better combustion and finally, increased performance.
