CONICAL FILTERS

Conical Filters » Carburetors Filters » Single Filters

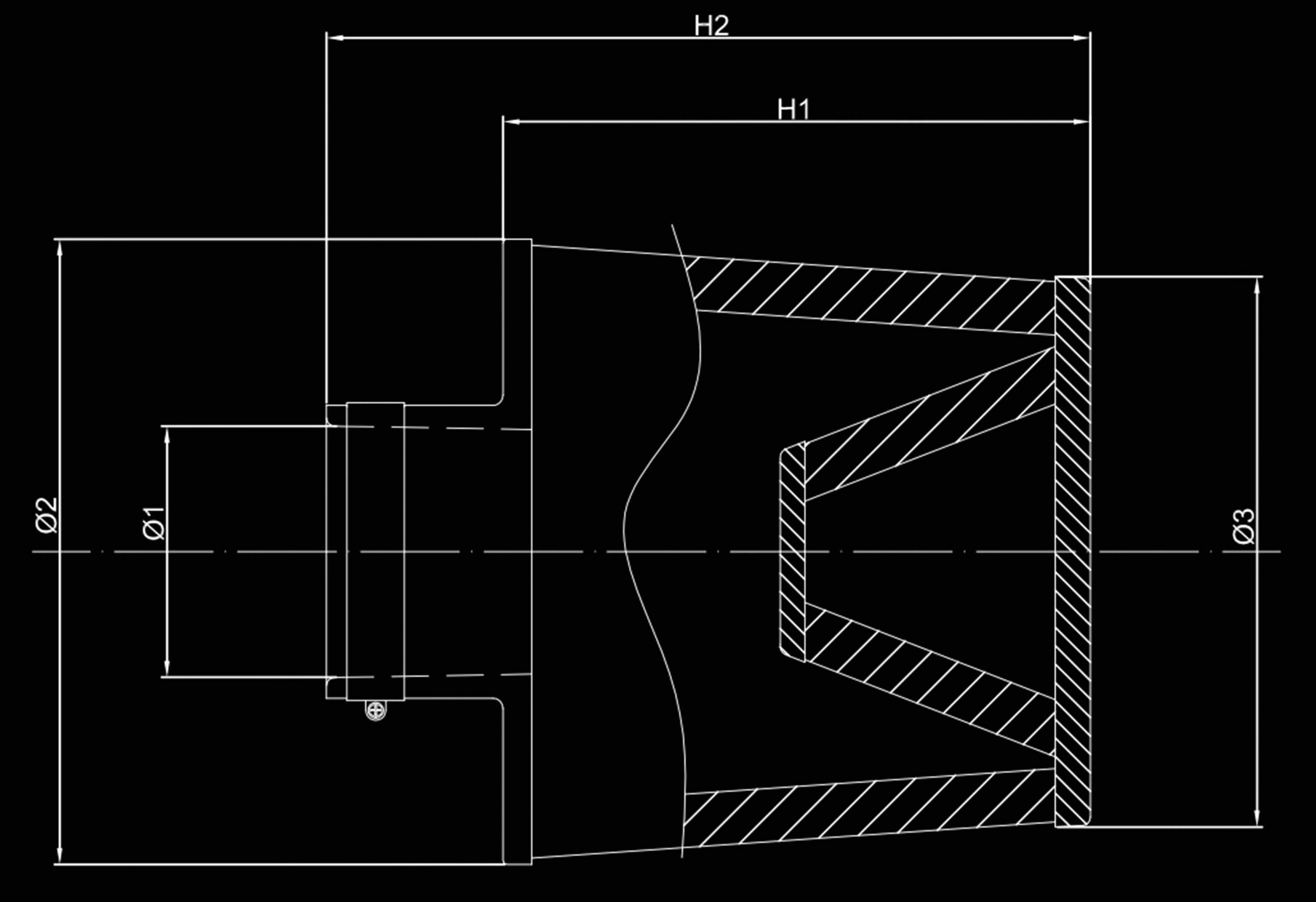

BMC Code Top material Flange Inside Diameter Ø1 Height - H1 Height - H2 Flange Length
FBPF50-120C Metal 50 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF50-120L Metal 50 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF50-120R Metal 50 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF50-70C Metal 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70C-CT Carbon 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70L Metal 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70L-CT Carbon 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70R Metal 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70R-CT Carbon 50 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF50-70SC Metal 50 mm 65 mm 82 mm 17 mm Diagram Filter
FBPF50-70SD Metal 50 mm 65 mm 82 mm 17 mm Diagram Filter
FBPF50-70SS Metal 50 mm 65 mm 82 mm 17 mm Diagram Filter
FBPF50-80C Metal 50 mm 80 mm 98 mm 18 mm Diagram Filter
FBPF55-120C Metal 55 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF55-120L Metal 55 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF55-120R Metal 55 mm 120 mm 138 mm 18 mm Diagram Filter
FBPF55-70C Metal 55 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF55-70C-CT Carbon 55 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF55-70L Metal 55 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF55-70L-CT Carbon 55 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF55-70R Metal 55 mm 71 mm 89 mm 18 mm Diagram Filter
FBPF55-70R-CT Carbon 55 mm 71 mm 89 mm 18 mm Diagram Filter
FMSA50-66O Metal 50 mm 66 mm 83 mm 17 mm Diagram Filter

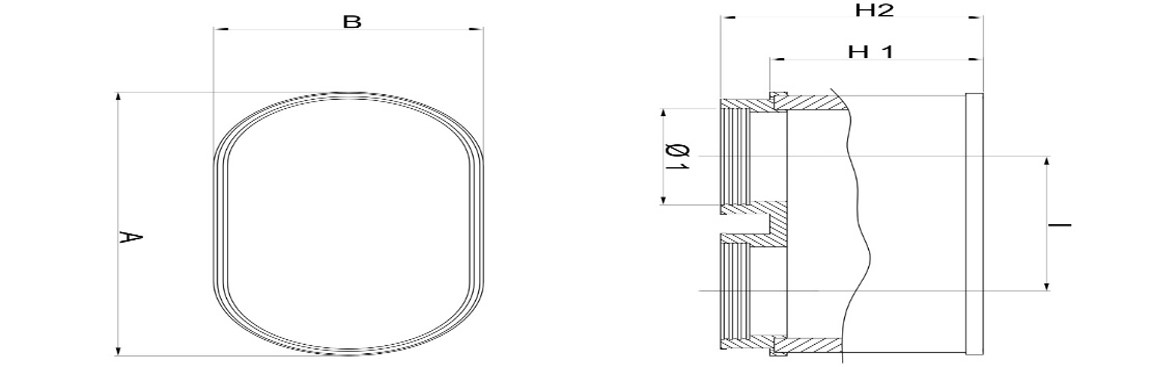

Conical Filters » Carburetors Filters » Twin FIlters
BMC Code Top material Flange Inside Diameter Ø1 Height - H2 Flange Length
FM2922 Polyurethane 61 mm 17 mm Diagram Filter
FM3092 Polyurethane 61 mm 17 mm Diagram Filter
FMSA47-64-45 Polyurethane 47 mm 67 mm 22 mm
FMTW38-74-76 Polyurethane 38 mm 103 mm 27 mm
FMTW47-64-76 Polyurethane 47 mm 98 mm 22 mm
FMTW47-64-76RACE Polyurethane 47 mm 98 mm 22 mm

Conical Filters

BMC conical filters let you remove the original air box and provide long life, better performance and easinessto replace.

These filters are available in the following versions:



Moreover, you can also find the following categories:

  • Carburettor filters: available both in single and twin version, these plug-and-play filters, directly installed on the carburettor, allow a greater and cleaner air flow.
  • Engine breather filters: useful in the oil vapors recovery process.
  • Specific kits: realized with conical filters and ready-to-install, these kits fit only particular models.
Advanced Technology and Material Quality

The red rubber used to produce the intake is especially heat-and-shock resistant.
It can't be distorted by temperature. The special mesh used for the filtering element enables us to produce air filters for applications up to 700 Hp (NOS or Turbo) without having deforming problems in the filter.

Applications

BMC direct induction filters can be fitted on every kind of car. If necessary, BMC is able to supply tubes and rubber connectors to make up a complete kit. For some particular applications, an alloy flexible tube is available to duct cold air to the conical filter. In fact, colder aspirated air means you have a bigger volumetric mass. A greater mass of air gives better combustion and finally, increased performance.
